Vehicles

Vehicles

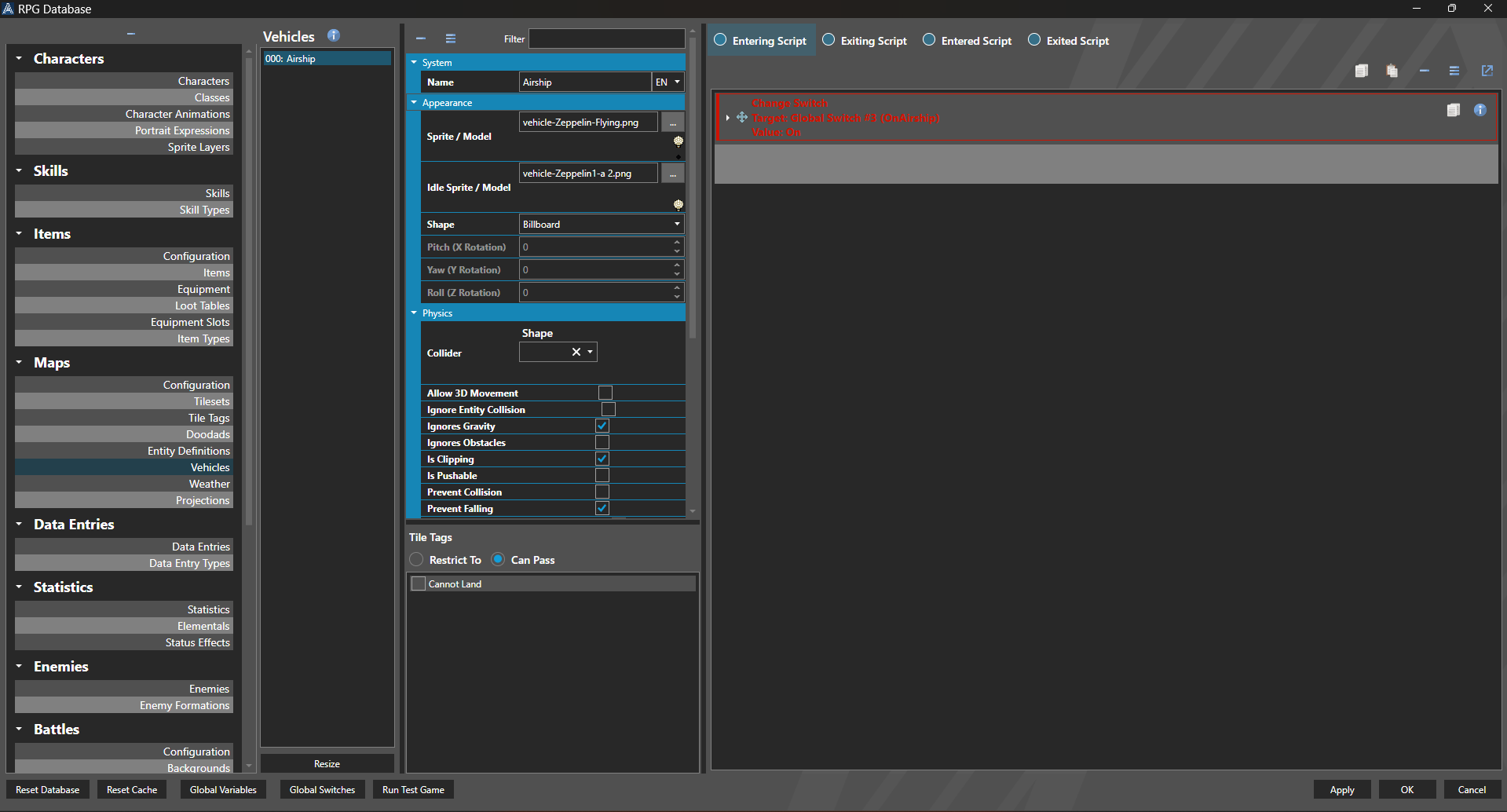

Maps.Vehicles

Vehicles are actors that can be boarded and controlled by player characters.

Properties

System

Name Explanation Type
Name The name of the Vehicle. String

Appearance

Name Explanation Type
Sprite / Model The sprite or model of the Vehicle on maps. Sprite or Model
Idle Sprite / Model The sprite or model of the Vehicle when not being ridden. Sprite or Model

Physics

Name Explanation Type
Collider The settings for the dimensions of the character collider. Values are measured in tiles. Collider
Ignore Entity Collision Whether or not to ignore collision between other entities. Toggle
Ignores Gravity Whether or not the Vehicle ignores the effects of gravity. Toggle
Ignores Obstacles Whether or not the Vehicle ignores terrain obstacles. Toggle
Is Clipping Whether or not the Vehicle operates independently of physics. Toggle
Is Pushable Whether or not the Vehicle can be pushed. Toggle
Prevent Collision Whether or not the Vehicle tries to avoid occupying the same tile as another entity. Toggle
Prevent Falling Whether or not the Vehicle tries to avoid falling. Toggle
Register Ignored Collisions Whether or not to register collisions even when ignored. Toggle
Speed The speed multiplier of the Vehicle. Number

Map Configuration

Name Explanation Type
Enter Interaction The interaction to trigger entering the Vehicle. Interaction
Exit Interaction The interaction to trigger exiting the Vehicle. Interaction
Entering Script The script that is executed before entry. Script
Exiting Script The script that is executed before exit. Script
Entered Script The script that is executed after entry. Script
Exited Script The script that is executed after exit. Script
Encounter Factor The factor applied to encounter steps. Number
Use Caterpillar System Whether or not the Vehicle is setup for each character in the party. Toggle
Is Character Visible Whether or not the character is visible on the Vehicle. Toggle
Character Riding Animation The animation to apply to the character when riding the Vehicle. Character Animations

Audio

Name Explanation Type
Use Custom Music Whether or not to use custom music while riding the Vehicle. Toggle
Custom Music The custom music while riding the Vehicle. Music

Tile Tags

Tile tags allow for a Vehicle to be restricted or have the additional capacity to pass different Tile Tags.

Restrict To will restrict the Vehicle to running only on the tile tags selected.

Can Pass will allow for the Vehicle to pass the tile tags included, in addition to anything else that is normally passable.

Scripting

The scripting for Vehicle allows for flexible control over how Vehicles work in your game. The workflow for each is as follows:

When the interaction is met for entering:

  1. Entering Script
  2. Characters are removed from the map and placed inside or on vehicles
  3. Entered Script

When the interaction is met for exiting:

  1. Exiting Script (the entire operation is cancelled if Cancel Vehicle Exit is called in this script)
  2. Characters are removed from the vehicle and placed on the map
  3. Exited Script
