Graphics Post Processor Editor

Graphics Post Processor Editor

Graphics Post Processor Editor assembles the effects applied to the finished frame — the pass that runs after the scene has been drawn.

Effects are held as a list and applied in the order they appear, so re-ordering them changes the result: a blur placed before a colour grade produces something different from the same two reversed. Each effect exposes its own parameters, and a Condition can decide whether it runs at all.

The effects available, and the parameters each one takes, are documented under Graphics Post Processors.

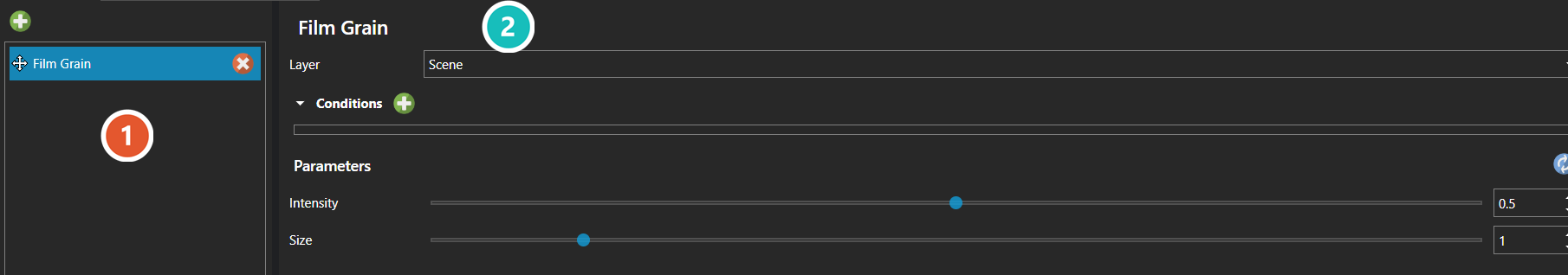

The Graphics Post Processor Editor

1 Effects

Every effect applied to this scene, in the order they run. Re-ordering the list changes the result, since each effect works on the frame the one above it produced.

2 Effect Settings

Configures whichever effect is selected: the layer it draws over, the conditions that decide whether it runs at all, and the parameters that effect exposes. The effects available and their parameters are listed under Graphics Post Processors.
