Entity Reference

Entity Reference

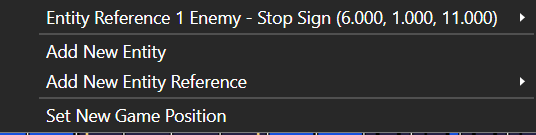

Entity References are created by placing Entity Definitions on the map. While the map editor is in Entity mode, right click a tile to bring up a drop down menu. Select Add Entity Reference and you will then select your Entity Reference from the list of your Entity Definitions. This creates an Entity Reference on the Map. Each Entity Reference is listed in the Tools section of the map editor.

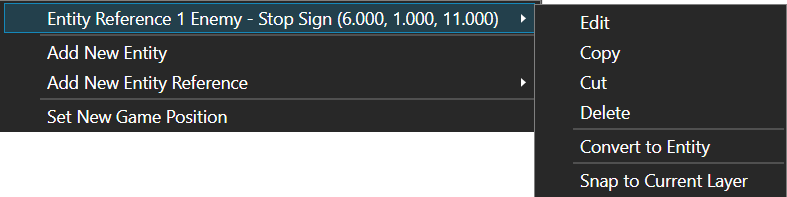

Once an Entity Definition is an Entity Reference on the Map, you can convert into a standard Entity and edit it as you would any other Entity.

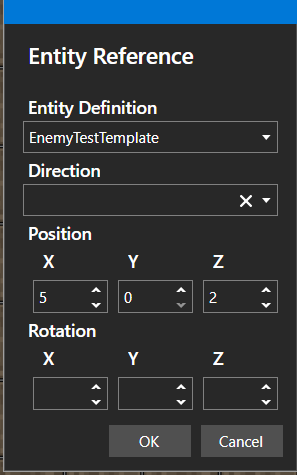

Double clicking the Entity Reference in the Map Editor will bring up an Entity Reference menu.

Properties

Entity Reference

Name	Explanation	Type
Direction	The direction the Entity Reference is facing
Entity Definition	The Entity Definition being referenced
Position	The x, y, and z co-ordinates for where the Entity Reference is located on the Map.
Rotation	The x, y, and z co-ordinates for the rotation of the Entity Reference on the Map.
